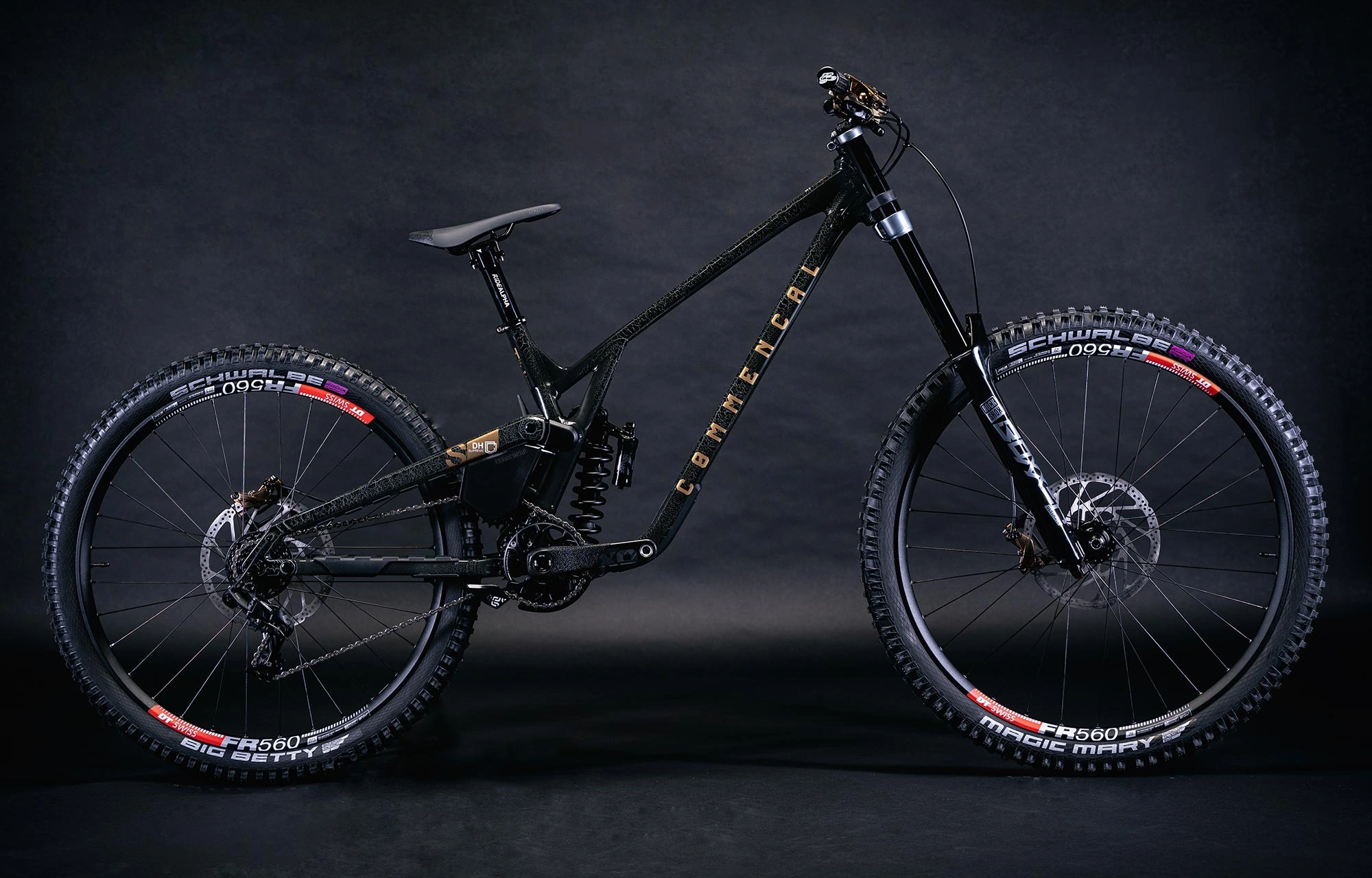

COMMENCAL SUPREME DH V5 WRINKLED GREY

Voici donc le SUPREME DH V5, synthèse parfaite de la collaboration de nos athlètes et de notre R&D.
3 années de gestation pour aboutir à ce concentré de technologie et d’expérience.
Son palmarès dès sa première année (2022) en Coupe du Monde est finalement sa meilleure publicité, 28 podiums, 3 overalls (Women, Men & Team) !

Avec sa toute nouvelle cinématique 6 Bar link – HVCS pour High Virtual Contact System, et son cadre 100% aluminium, nous restons fidèles à nos convictions tout en recherchant toujours plus de performance et de dynamisme.
Le SUPREME DH V5 est également pourvu de nombreux points d’ajustement afin de permettre à tous de régler au mieux “SA” machine à tuer le chrono.

1. Specs

   • CADRESupreme DH V5 29/27, 220 mm travel

     29”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

   • AMORTISSEURRockShox SuperDeluxe Coil Ultimate

     250 x 75 mm, LSC, LSR , 450 lbs

   • FOURCHEROCKSHOX Boxxer Ultimate, 200 mm travel

     29″, Charger 2.1 damper, RC2, DebonAir, rebound, Boost (20 x 110 mm), 0 Token

   • JEU DE DIRECTIONCANE CREEK SERIES 40 ZS56/ZS56

     Alloy cups, sealed bearings

   • POTENCERENTHAL Integra II

     45 mm extension, direct mount, 31.8 mm

   • CINTRERENTHAL Fatbar V2

     31.8 mm, 80 mm width, 30 mm rise, AluGold

   • GRIPSRENTHAL Traction Lock On

     Ultra tacky, black

   • FREINSTRP DH-R EVO Gold, 4 pistons, resin pads

     Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width

   • SHIFTERSSRAM GX DH

     7 sp

   • GUIDE CHAINEE13 LG1 + Bottom Guide

     32-34t

   • DERAILLEURSRAM GX DH

     7 sp

   • BOITIER DE PEDALIERSRAM DUB

     Pressfit

   • PEDALIERSRAM X01 DH, 165 mm crank arms, DUB

     Chainring: SRAM X01 DH, 34t

   • CHAINESRAM PC-1170

     Black

   • CASSETTESRAM GX DH

     7 sp, 11-25t

   • JANTESDT SWISS FR560

     REAR: 27.5”, 32h, 30 mm inner width- FRONT: 29”, 32h, 30 mm inner width

   • MOYEUXRear: DT SWISS 350 – Front: DT SWISS 350

     Rear: 32h, sealed bearings, 12 x 150 mm, black – Front: 32h, sealed bearings, 20 x 110 mm Boost, black

   • RAYONSDT SWISS Competition

     J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

   • PNEUSRear: SCHWALBE Big Betty – Front: SCHWALBE Magic Mary

     REAR: 27.5” x 2.4”, Super DH, Addix Ultra Soft – FRONT: 29″ x 2.4″, Super DH, Addix Ultra Soft

   • TIGE DE SELLERIDE ALPHA Super Light

     31.6 mm, 250 mm, Alloy 7075

   • SELLEFIZIK Gravita Alpaca X5

     MG rails, flexible “wings”

   • POIDS– kg

     Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

   • PEDALESNo

   • COULEURWrinkled Grey

     Shiny Finish

   • ACCESSOIRESChainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, pick-up pad

2. Vidéos

3. Tech

   • TYPE DE VELOFrame DH Racing

   • CADREAl 6066 T6

   • POIDS DU CADRE4,2 kg (without accessories)

   • DEBATTEMENT ARRIERE220 mm

   • ENTRE-AXE / COURSE250 mm / 75 mm

   • COMPATIBLE PIGGY BACKYes

   • BUSELURES AMORTISSEUR30 x 8 mm / 30 x 8 mm

   • HAUTEUR DE FOURCHE RECOMMANDEE / MAX612 mm / 620 mm

   • JEU DE DIRECTIONZS56 / ZS56

   • LARGEUR MAXIMALE PNEUS (ETRTO)65 mm

   • STANDARD FREIN A DISQUEPostmount 200 mm

   • DIAMETRE MAX DISQUE DE FREIN AR223 mm

   • DIAMETRE TIGE DE SELLE / COLLIER DE SELLE31,6 mm / 34,9 mm

   • BOITIER DE PEDALIERPress Fit BB 107

   • ISCGISCG 05

   • AXE DE ROUE ARRIERE157 x 12 mm

4. Géometrie

5. Tailles

6. Photos

7. News

var productInfo = {geometry : {data : [{name : “LONGUEUR TUBE DE SELLE”,option : [{name: “S Low”,value: “370”},{name: “S High”,value: “370”},{name: “M Low”,value: “370”},{name: “M High”,value: “370”},{name: “L Low”,value: “370”},{name: “L High”,value: “370”},{name: “XL Low”,value: “370”},{name: “XL High”,value: “370”}]},{name : “ANGLE TUBE DE SELLE”,option : [{name: “S Low”,value: “67,5”},{name: “S High”,value: “67”},{name: “M Low”,value: “67,5”},{name: “M High”,value: “67”},{name: “L Low”,value: “67,5”},{name: “L High”,value: “67”},{name: “XL Low”,value: “67,5”},{name: “XL High”,value: “67”}]},{name : “ANGLE DE DIRECTION”,option : [{name: “S Low”,value: “63,7”},{name: “S High”,value: “63,2”},{name: “M Low”,value: “63,7”},{name: “M High”,value: “63,2”},{name: “L Low”,value: “63,7”},{name: “L High”,value: “63,2”},{name: “XL Low”,value: “63,7”},{name: “XL High”,value: “63,2”}]},{name : “HAUTEUR DE DOUILLE”,option : [{name: “S Low”,value: “112”},{name: “S High”,value: “112”},{name: “M Low”,value: “112”},{name: “M High”,value: “112”},{name: “L Low”,value: “112”},{name: “L High”,value: “112”},{name: “XL Low”,value: “112”},{name: “XL High”,value: “112”}]},{name : “EMPATTEMENT”,option : [{name: “S Low”,value: “1250”},{name: “S High”,value: “1243”},{name: “M Low”,value: “1287”},{name: “M High”,value: “1290”},{name: “L Low”,value: “1315”},{name: “L High”,value: “1318”},{name: “XL Low”,value: “1335”},{name: “XL High”,value: “1338”}]},{name : “LONGUEUR TUBE SUPERIEUR”,option : [{name: “S Low”,value: “593”},{name: “S High”,value: “587”},{name: “M Low”,value: “618”},{name: “M High”,value: “612”},{name: “L Low”,value: “646”},{name: “L High”,value: “640”},{name: “XL Low”,value: “666”},{name: “XL High”,value: “660”}]},{name : “LONGUEUR BASES”,option : [{name: “S Low”,value: “440”},{name: “S High”,value: “442,5”},{name: “M Low”,value: “440”},{name: “M High”,value: “442,5”},{name: “L Low”,value: “440”},{name: “L High”,value: “442,5”},{name: “XL Low”,value: “440”},{name: “XL High”,value: “442,5”}]},{name : “HAUTEUR BOITIER DE PEDALIER”,option : [{name: “S Low”,value: “3”},{name: “S High”,value: “-3”},{name: “M Low”,value: “3”},{name: “M High”,value: “-3”},{name: “L Low”,value: “3”},{name: “L High”,value: “-3”},{name: “XL Low”,value: “3”},{name: “XL High”,value: “-3”}]},{name : “HAUTEUR DE FOURCHE”,option : [{name: “S Low”,value: “612”},{name: “S High”,value: “612”},{name: “M Low”,value: “612”},{name: “M High”,value: “612”},{name: “L Low”,value: “612”},{name: “L High”,value: “612”},{name: “XL Low”,value: “612”},{name: “XL High”,value: “612”}]},{name : “HAUTEUR A L'ENTREJAMBE”,option : [{name: “S Low”,value: “-“},{name: “S High”,value: “-“},{name: “M Low”,value: “-“},{name: “M High”,value: “-“},{name: “L Low”,value: “-“},{name: “L High”,value: “”},{name: “XL Low”,value: “-“},{name: “XL High”,value: “-“}]},{name : “PROJETE HORIZONTAL BB/TT”,option : [{name: “S Low”,value: “435”},{name: “S High”,value: “430”},{name: “M Low”,value: “460”},{name: “M High”,value: “454”},{name: “L Low”,value: “488”},{name: “L High”,value: “482”},{name: “XL Low”,value: “508”},{name: “XL High”,value: “502”}]},{name : “PROJETE VERTICAL BB/TT”,option : [{name: “S Low”,value: “649”},{name: “S High”,value: “645”},{name: “M Low”,value: “649”},{name: “M High”,value: “645”},{name: “L Low”,value: “649”},{name: “L High”,value: “645”},{name: “XL Low”,value: “649”},{name: “XL High”,value: “645”}]},{name : “DEPORT DE FOURCHE”,option : [{name: “S Low”,value: “52”},{name: “S High”,value: “52”},{name: “M Low”,value: “52”},{name: “M High”,value: “52”},{name: “L Low”,value: “52”},{name: “L High”,value: “52”},{name: “XL Low”,value: “52”},{name: “XL High”,value: “52”}]},],image: “https://tech.commencal.com/m/images/geo/2SUPREME-DH-V5-GEO.jpg”},size: {data : [{name : “S”, minCm : “158”, maxCm : “170”, minInch: “5.2”, maxInch: “5.7”},{name : “M”, minCm : “168”, maxCm : “180”, minInch: “5.6”, maxInch: “5.11”},{name : “L”, minCm : “178”, maxCm : “190”, minInch: “5.10”, maxInch: “6.3”},{name : “XL”, minCm : “188”, maxCm : “210”, minInch: “6.2”, maxInch: “6.11”}], conf: {minCm: “145”,maxCm: “230”,minInch: “4’9””,maxInch: “7’2””}},video : “PLWZvrbIYU5MoHvcskUKTgoon4Vw8P-VBy”,photo : {folder: “”,data: [“URL_DE_LA_PHOTO”, “URL_DE_LA_PHOTO”, “URL_DE_LA_PHOTO”]}, idProduit : “156”};
