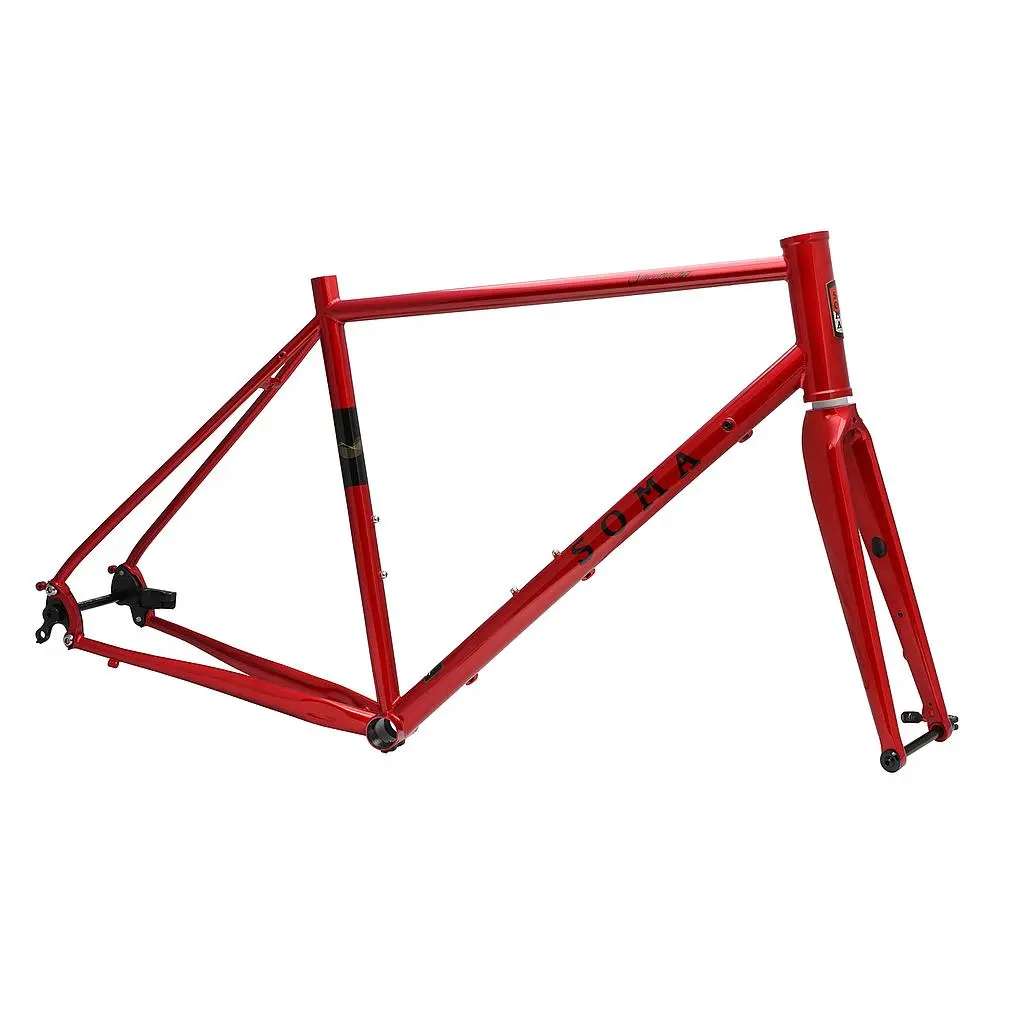

The Smoothie HP is the “high protein” version of our Smoothie road frame that was part of our line for almost 20 years.
Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders.
Frame Features:
– Tange Prestige heat-treated double butted CrMo steel
– Extra oversized down tube and chainstays for greater pedaling stiffness
– Ovalized top tube for increased lateral stiffness and vertical compliance
– Size specific tubing (Larger diameter down tubes on the larger sizes)
– Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame

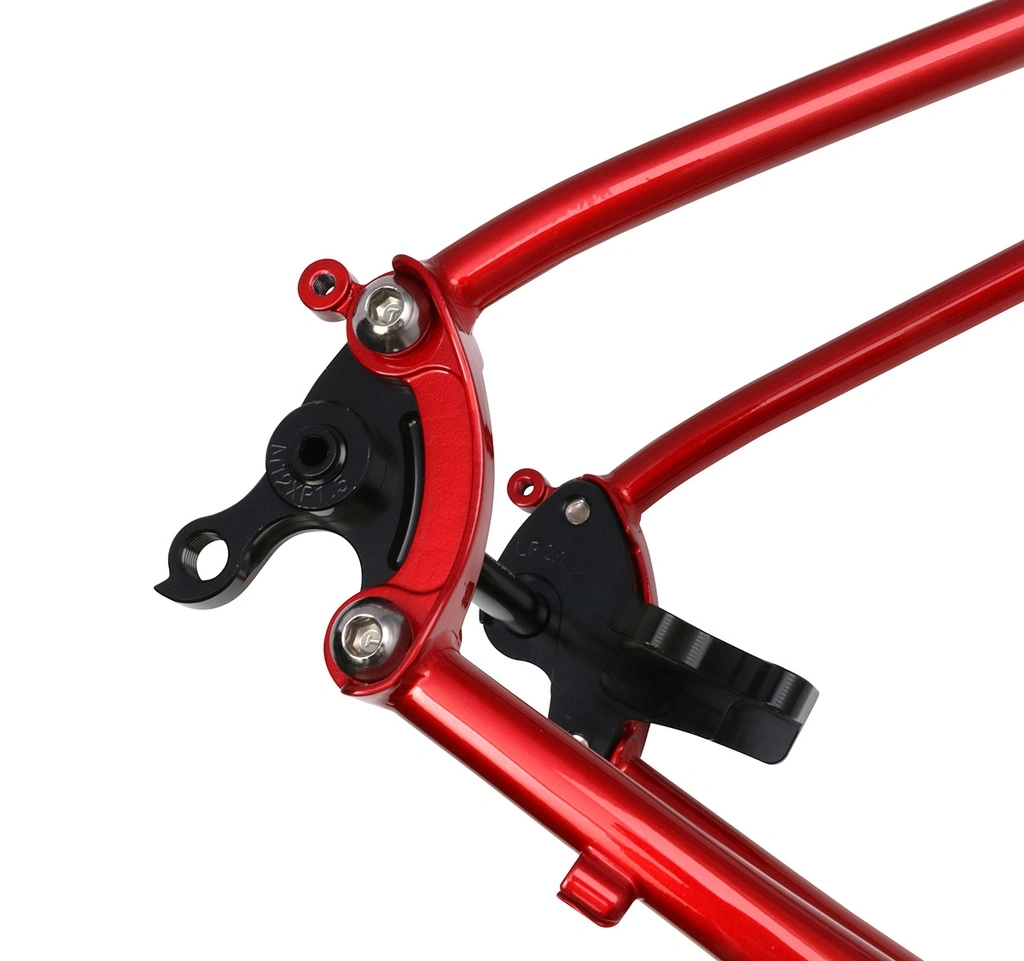

– Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)

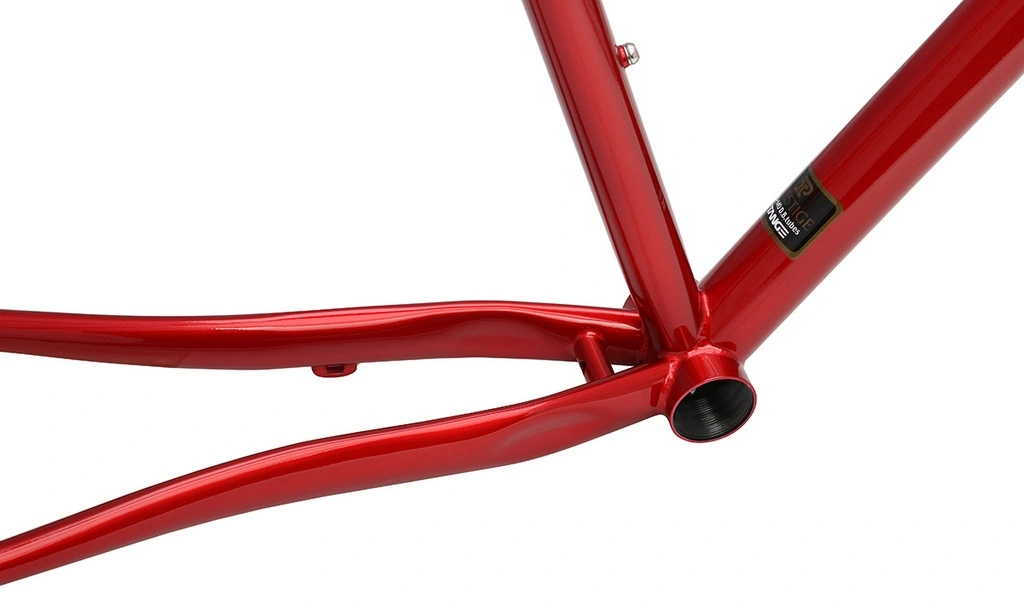

– BSA Threaded bottom bracket shell
– Rear rack/fender mounts
– Max tire size: 700x32c with fenders
– Two water bottle boss sets
– 6 sizes: 48, 52, 54, 56, 58, 60
(though the size selector shows a 62cm, we will not be getting that size till mid-2023)
– In Candy Apple Red
Fork Features:
– Carbon Fiber
– 43mm rake (48mm on size 48 and 52mm)
– Fits 700×32 tires with fenders
– 12 x 100mm QR thru-axle, flat mount brake compatible
– Tapered alloy steerer
– Internal cable routing
-
Specifications and Recommendations:
Frame:
– Seatpost: 27.2mm, Seat collar: 29.8 or 30.0mm
– Front derailleur: 28.6mm, bottom pull
– Rear hub thru-axle: 142mm x 12mm
– Headset SHIS: ZS44/28.6 | EC44/40)
– Max.Tire Fit: 700c x 35mm (certain front derailleurs may reduce tire clearance)
– Min. Tire Recommendation: 700c x 23mm – Max chainring fit: 52-39-30t, 53-39t,
– Bottom bracket shell: 68mm wide, English threads
– Compatible with downtube shifters
– Rear disc brakes: 140mm rotors (160mm max), Flat mount
– Also compatible with 57mm reach road rim brake
– Rear rack fitting: We recommend a rear rack designed for short chainstay bikes like our Rakku to reduce heel strike with large bags.
– Recommended fender fit: 37-45mm wide; ideally 10mm wider than tire widthFork:
– Rake: 43mm (48mm for size 48cm and 52cm)
– Axle to crown: 380mm
– Disc brake mount type: Flat mount, 160mm max rotors
– Also compatible with 57mm reach road rim brake
– Hub thru-axle: 100 x 12
– Fender mounts on inside of legs
– Max.Tire Fit: 700c x 35mm
– Steerer: Aluminum, so you can use either star washers or a compression (expansion) plug with your headset. 350mm long
